    Beiyi Machinery BY-PB600GD Stationary Hydraulic round pile breaker

    Beiyi Pile Breaker is an efficient, economical and advanced system for cutting concrete outcrops and foundation piles.

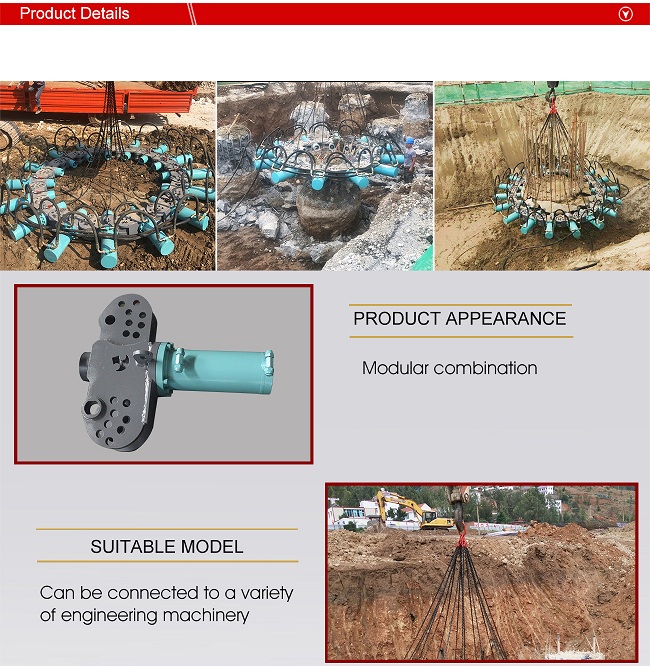

    The modular design makes the pile breaker extremely easy to crush concrete piles of different diameter at the jobsite.Additionally, each module contains a separate cylinder and brazing rod system. With the help of hydraulic pressure, the oil cylinder drives the brazing rod to squeeze the pile.Thanks to this way of working, no cracks and damage will be caused to the pile and reinforcement underground.When it comes to the efficiency of our pile crusher, the traditional way of crushing normally takes one day for 2-3 pile. However, the beiyi pile breaker break 1 pile just need 4 minutes and only 10 minutes for round hydraulic pile breaker.while keeping intact the rebar and structural integrity of the piles.Also, thanks to the independent modular structure, air and noise pollution in construction sites will be reduced significantly.


    Engineering application scope

    Hydraulic pile breaker can break such like cast-in-place piles, precast piles etc. It can be divided into round,square and stainless steel series pile breaker by the different pile shape. Our hydraulic pile breaker is widely used in high-speed railway bridges and civil building pile foundation engineering.Normally hydraulic round pile breaker can break pile diameter from 200-2500mm which can meet the requirements of all kinds of large-scale infrastructure construction.

    Max.Thrust (KN)320
    Max.Cylinder Trip (mm)200
    Max.Cylinder Pressure (Mpa)30
    Single Cylinder Max.Flow (L/min)20
    Single Breaking Size (mm)300
    Cut Pile Dia (mm)400-600
    Quality/8h60-80
    Machinery Tonnage (T)15
    Total Weight (T)1
