    Hydraulic Pile Breaker

    • Product overview
    • Application
    • Product configuration

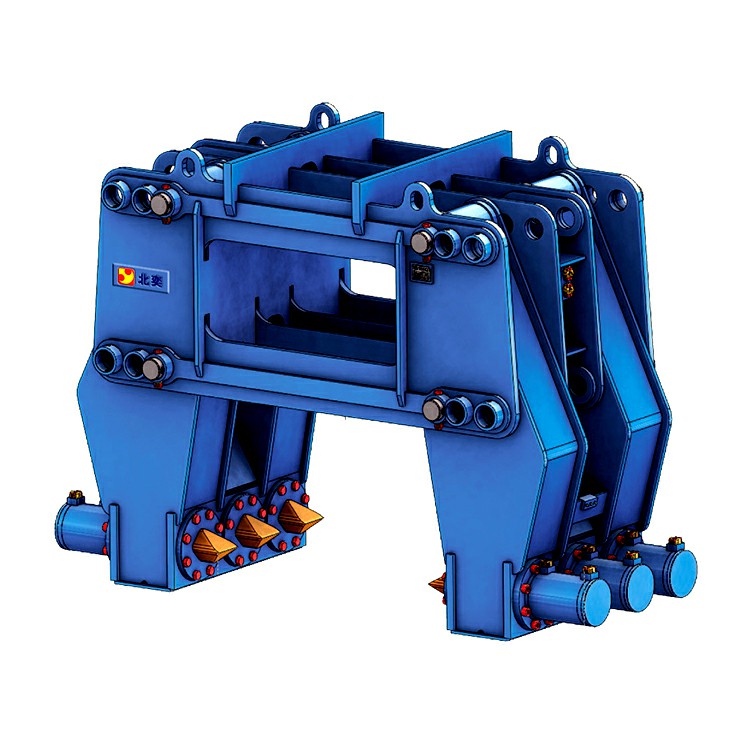

    Beiyi Machinery Even Wall Hydraulic Pile Breaker

    Hydraulic Concrete Breaker For Cutting 300-800mm Wall

    Hydraulic Breaker for Wall Cutting is an advanced,efficient and time-saving wall breaker.It breaks wall or pile from both ends simultaneously by hydraulic system.The pile breaker is suitable for cutting off contiguous pile walls in high-speed rail,bridge and civil construction pile.

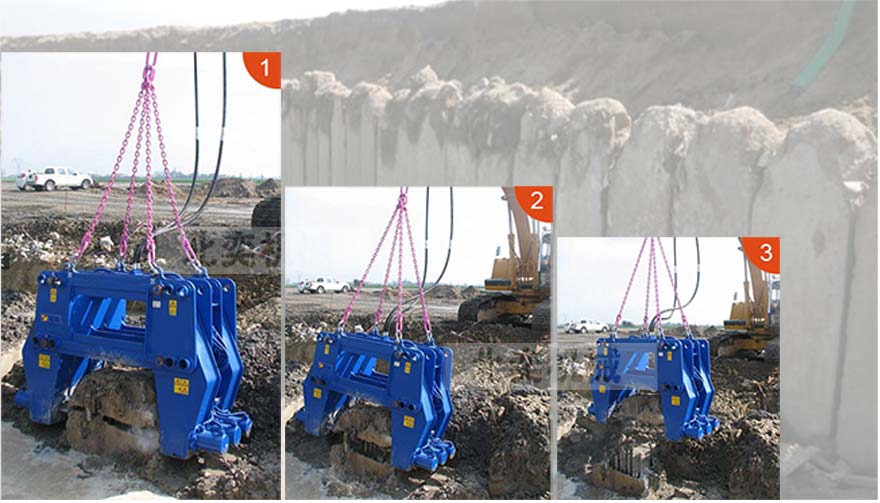

    This pile breaker needs to be mounted on fixed pump station or other movable construction machinery like an excavator.Generally speaking,the hydraulic breaker usually connects to a pump station in pile foundation construction of high-rise buildings.The total investment of equipment in this way is small.It is convenient for movement,which is suitable for the breaking of group of piles. In other projects,this pile breaker is often connects to an excavator as the excavator attachments.Remove the bucket of excavator and make the hoisting chain of the hydraulic breaker is suspended at the connecting shaft between bucket and arm.Connect the two kinds of equipment,and then the hydraulic oil path of any cylinder of the excavator is connected to the pile breaker through the balance valve,drive the cylinder of pile breaker.
    The combined pile breaker is easy to move and can operate in a wide area.It is suitable for the construction projects with scattered piles and long operation line.



    ENGINEERING APPLICATION SCOPE:

    Hydraulic pile breaker can break such like cast-in-place piles,precast piles etc.It can be divided into round,square and stainless steel series pile breaker by the different pile shape.Our hydraulic pile breaker is widely used in high-speed railway bridges and civil building pile foundation engineering.Normally hydraulic round pile breaker can break pile diameter from 200-2500mm which can meet the requirements of all kinds of large-scale infrastructure construction.

    Max.Thrust (KN)320
    Max.Cylinder Trip (mm)200
    Max.Cylinder Pressure (Mpa)30
    Single Cylinder Max.Flow (L/min)20
    Single Breaking Size (mm)300
    Cut Pile Dia (mm)300-1500
    Diameter of Drill Rod (mm)110
    Machinery Tonnage (T)20
    Total Weight (T)1.6-10
    Features:

    1. Rapid assembly design for convenient transportation and construction, improving work efficiency.

    2. Simple design for quick repairs and increased machine life,Bringing the best benefits to customers.

    3. Overall construction method, low energy consumption.

    4. Full hydraulic drive, low noise during operation.

    5. Operation and maintenance are very easy, and does not require special skills.
