BeiYi

    Hydraulic Pulverizer

    • Product overview
    • Application
    • Product configuration

    BY-HC60/120/150/200/300/350 Hydraulic Pulverizer

    Product features and details
    1.Using high hardness light steel
    2.Strengthen the wear parts and structural parts,and double the life
    3.The hydraulic cylinder is equipped with a cover to block the splashing debris of concrete blocks and steel bars
    4.The jaw teeth are made into a sharp shape to firmly fix the concrete block,wedged and crushed for rapid crushing,and the jaw teeth are strong and have high wear resistance.
    5.It is easy to disassemble and assemble,not only the speed of the oil cylinder is doubled,but also it can be used in common with the crusher,and one machine has multiple tasks.
    6.Low noise and no vibration,meeting environment protection requirements,suitable for demolition projects in cities and high-tech parks
    7.The operation is completely mechanized,saving time and effort.The working efficiency is two to three times that of the breaker.

    Interchangeable Rebar Shears
    Equipped with a steel bar shearer,it can cut the steel bars in the broken concrete building while improving the construction efficiency,making the crushing operation more efficient.

    Cylinder
    High-pressure oil cylinder,the external hydraulic system provides oil pressure for the hydraulic oil cylinder,so that the movable jaw and the fixed jaw of the hydraulic tongs are integrated to achieve the effect of crushing objects.

    Tooth
    Crocodile teeth are sharpened to hold concrete blocks firmly,embedded and crushed for rapid crushing,crocodile teeth are strong and have high wear resistance.

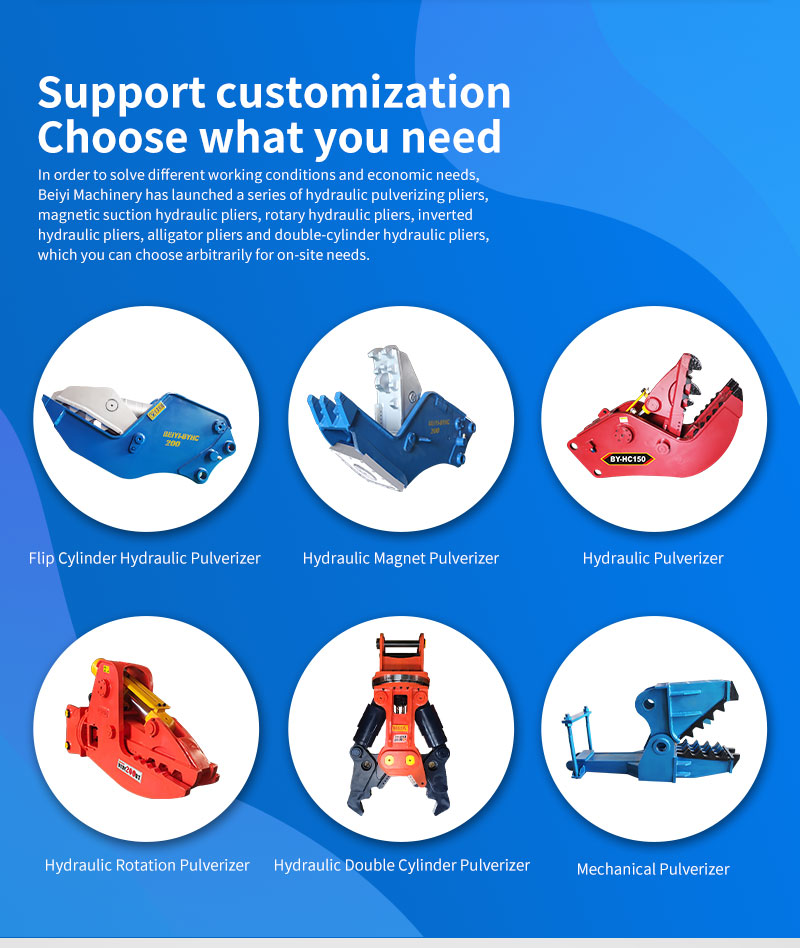

    In order to solve different working conditions and economic needs,Beiyi Machinery has launched a series of hydraulic pulverizer pliers,magnetic suction hydraulic pliers,rotary hydraulic pliers,inverted hydraulic pliers,alligator pliers and double-cylinder hydraulic pliers,which you can choose arbitrarily for on-site needs.

    Beiyi hydraulic pulverizing pliers are composed of pliers body,hydraulic cylinder,movable jaw and fixed jaw.The external hydraulic system provides oil pressure for the hydraulic cylinder,so that the movable jaw and fixed jaw of the hydraulic pliers are combined together to achieve the effect of crushing objects.

    ModelTotal Weight
    (KG)
    Total Length
    (MM)
    Max Opening Width
    (MM)
    Breaking Force
    (KN)
    Max Oil Pressure
    (MPA)
    Hydraulic Excavator
    (T)
    BY-HC60395
    120041550264-8
    BY-HC120730140054260
    328-15
    BY-HC15011001500600603212-18
    BY-HC20015201800820793418-25
    BY-HC30021001950107510034
    25-35
    BY-HC3502200255010751153435-45


    Features:
    Designed for high efficiency secondary demolition and concrete recycling, the Hydraulic Pulverizer offers industry-leading power-to-weight ratio and large jaw capacities.The all-new design is optimized to pick-up,crush,and separate rebar from concrete faster than ever before thanks to high-tip forces,a large jaw,and fast cycle times.The unique shape makes it extremely versatile for use on the ground,facilitating demolition of walls and vertical cement structures,pavement,and concrete slabs.
