    Hydraulic Pulverizer

    • Product overview
    • Application
    • Product configuration

    BY-HC200 Hydraulic pulverizer-concrete pulverizer


    Suitable for 18-25T excavator——

    Operating principle:

    Hydraulic pulverizer is composed with body, hydraulic cylinder, movable jaw and fixed jaw.The external hydraulic system offer hydraulic pressure for the hydraulic cylinder to make the movable jaw and fixed jaw open and close to achieve the effect of crushing objects.

    Strong strength=High Efficiency

    1.Work efficiency is two or three times than hydraulic breaker.
    2.Crushing forceps can be excellent to complete a series of operations that is separating reinforcing steel from concrete block,bending and loading into the trucks,which obviously improved the working efficiency.
    3.Fully mechanized work, safety and saving time.


    Big up close=increase efficiency

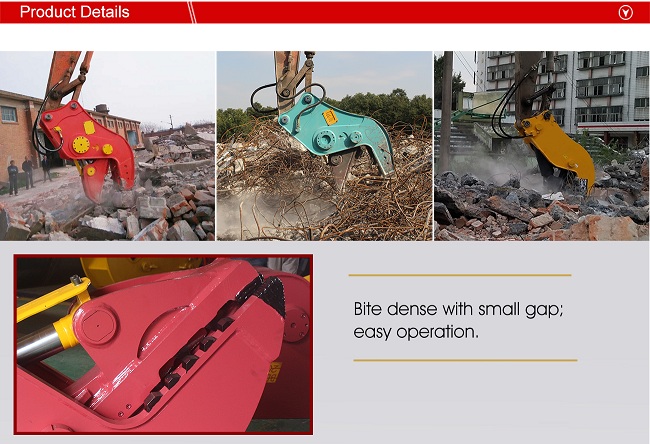

    1.Bite dense with small gap;easy operation.

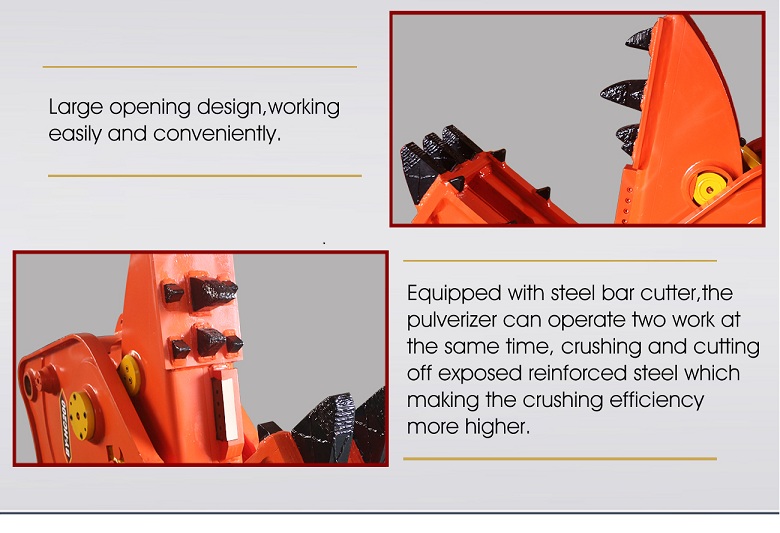

    2.Large opening design,working easily and conveniently.
    3.Equipped with steel bar cutter,the crushing forceps can operate two work at the same time, crushing and cutting off exposed reinforced steel which making the crushing efficiency more higher.

    Sturdy and durable=cost saving

    1.Using Swedish high hardness of lightweight steel, solid and clinking.
    2.Fully understand the Chinese market use habits, strengthen focus on wear parts and structure with double life.
    3.Jaw teeth are made in special shape to firmly fix the concrete blocks, wedging and crushing, in order to crushing quickly.Jaw teeth is very strong, with high wear resistance.


    Lightweight and quick=Create benefit

    1.Disassembling easily, exclusive oil circuit design,not only double the oil cylinder speed but can be in common use of knapper, one machine with more task.
    2.Low noise, no vibration, meet the requirements of environmental protection, which are Suitable for city and high-tech zone demolition project.
    3.Hydraulic oil cylinder is equipped with a protective cover to obstruct the splash of concrete and steel debris.

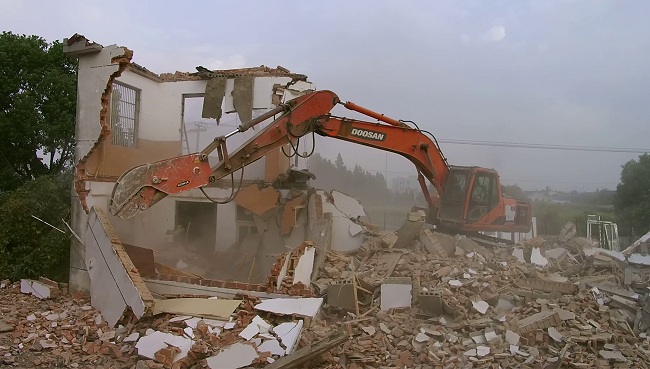

    Apartment building, Workshop beams, Houses and other buildings demolition

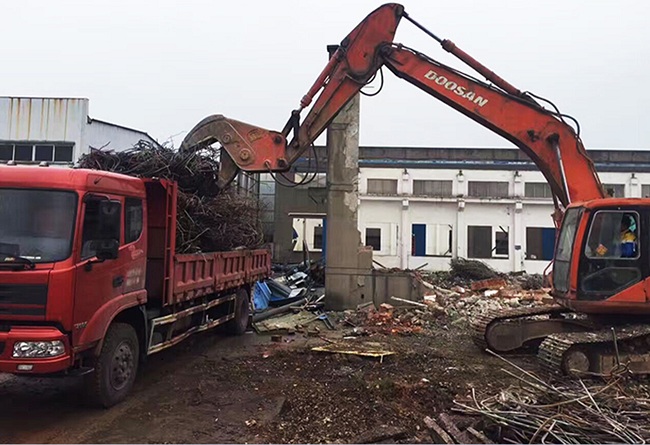

    -Steel recycling

    -Concrete crushing





    ModelTotal Weight
    (KG)
    Total Length
    (MM)
    Max Opening Width
    (MM)
    Breaking Force
    (KN)
    Max Oil Pressure
    (MPA)
    Hydraulic Excavator
    (T)
    BY-HC60395
    120041550264-8
    BY-HC120730140054260
    328-15
    BY-HC15011001500600603212-18
    BY-HC20015201800820793418-25
    BY-HC30021001950107510034
    25-35
    BY-HC3502200255010751153435-45

    Features:
    Designed for high efficiency secondary demolition and concrete recycling, the Hydraulic Pulverizer offers industry-leading power-to-weight ratio and large jaw capacities.The all-new design is optimized to pick-up,crush,and separate rebar from concrete faster than ever before thanks to high-tip forces,a large jaw,and fast cycle times.The unique shape makes it extremely versatile for use on the ground,facilitating demolition of walls and vertical cement structures,pavement,and concrete slabs.
