    Hydraulic Shears

    • Product overview
    • Application
    • Product configuration

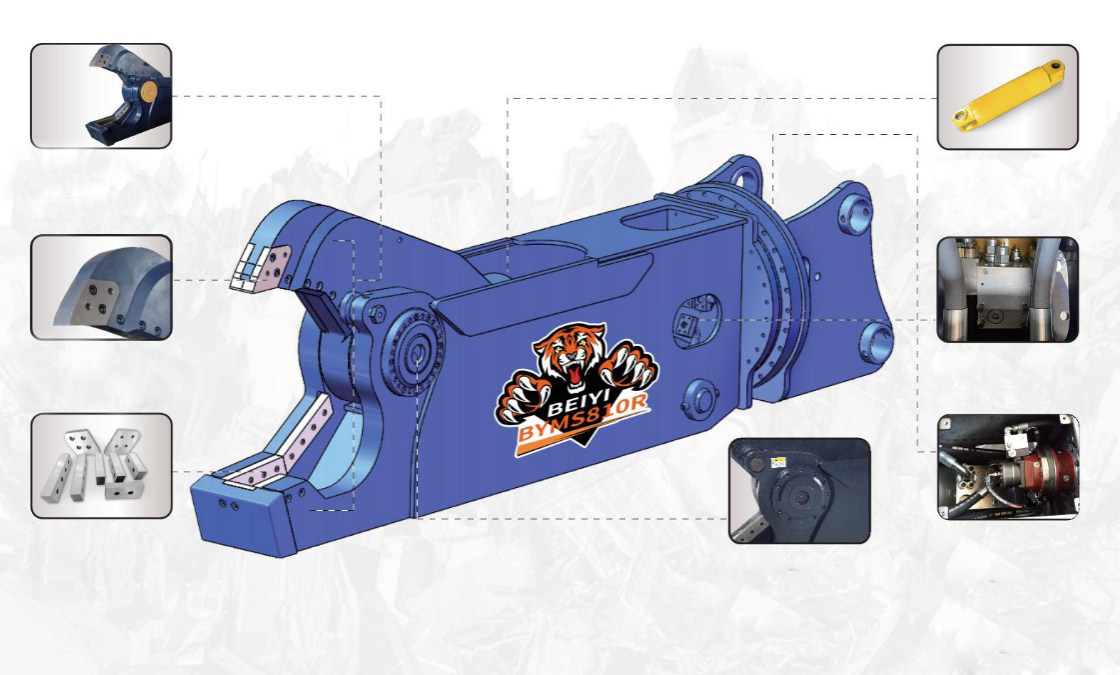

    BYMS Series Hydraulic Shear Scrap Shear


    1. Fuselage shell
    ▲ The core components are welded steel plates.
    2. Alloy blade
    ▲ The blade is made of wear-resistant alloy steel, which
    perature and deformation.
    3. High power and high pressure oil cylinder
    ▲ The oil cylinder adopts rolling technology, and the straightness and accuracy are greatly improved compared with the honing pipe. The surface hardness is higher than the honing pipe, and the service life is improved. The oil cylinder is increased to increase the shear force, and the penetration force is increased by 30%.

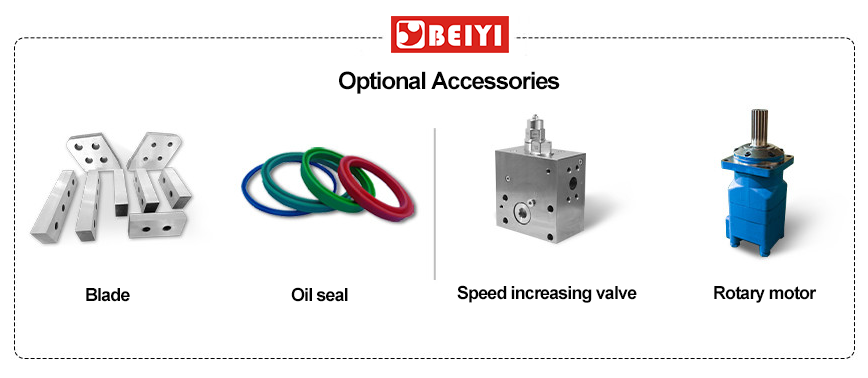

    4. Speed increasing valve
    ▲ Add speed increasing valve to increase the workload and double the shear speed.
    5.360 ° rotating structure
    ▲ The rotary disk with reducer can better protect the rotary motor and make the rotation more stable.

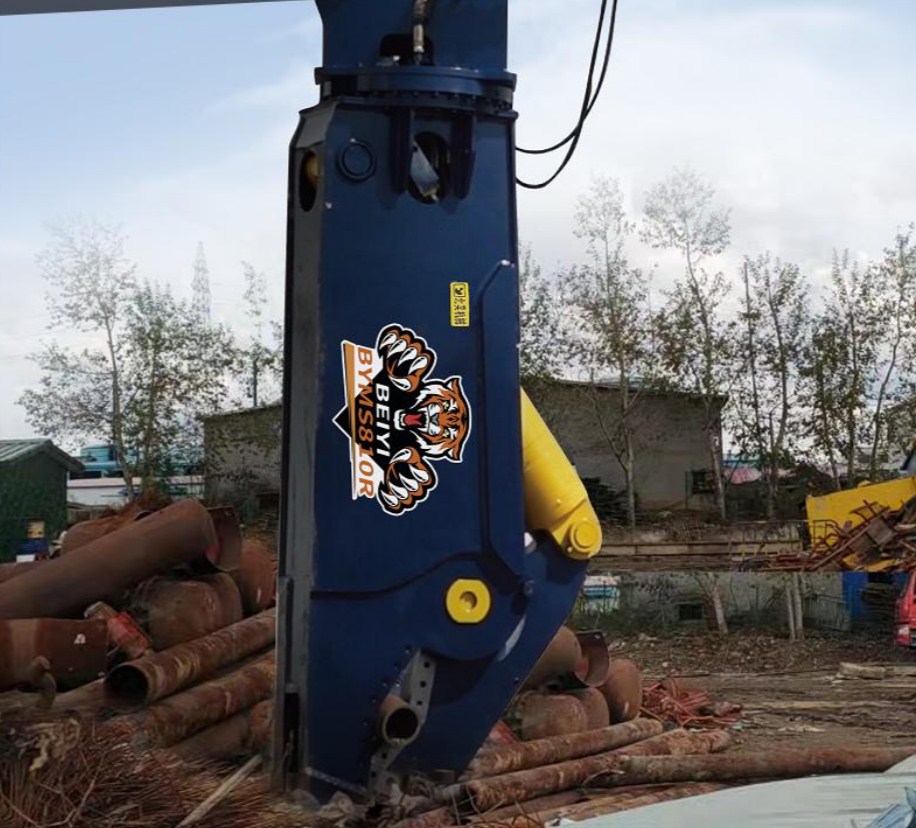

    Hydraulic shears used in demolition are one of the most powerful, versatile tools in the excavator attachment arsenal. Steel hydraulic jaws are used to dismantle a steel structure during demolition, easily cutting through steel plates, girders and rebar.Hydraulic steel shears are also very helpful to selectively pick materials for sustainable materials management and recycling efforts.

    ModuleBYMS260RBYMS360RBYMS460RBYMS610RBYMS810RBYMS1000R
    Weight(KG)58011661680252237665266
    Opening(mm)2503604606008001000
    Depth(mm)
    310450488640736880
    Main Shaft Force(T)300388799123618982387
    Suits Excavator/Stick Mounting(T)
    6-1010-1520-2520-4030-6040-80
    Suits Excavator/Boom Mounting(T)
    3-106-1510-2518-4020-6025-80
    Dimension(mm)1880*556*4482459*600*7162900*640*8913300*800*10373725*840*13143891*899*1508

    Clipping range

    **Applicable object and scope(cutting object is strip size)
    MaterialBYMS260RBYMS360RBYMS460RBYMS610RBYMS810RBYMS1000R
    Thickness of the blade(mm)
    6
    1014
    1820
    20
    Round bar(mm)
    Φ40Φ50Φ50Φ60Φ70Φ75
    I-beam(mm)8*150*10015*400*20016*500*200
    20*700*300
    20*800*30022*900*300
    Steel pipe(mm)4*Φ805*Φ1205*Φ1506*Φ2006*Φ3006*Φ350
    Steel plate(mm)20*10025*10030*15040*13060*10070*120
    Triangle steel(mm)5*50*505*100*1008*100*1008*150*1508*200*20010*200*200
    **No-shearing Range:
    1.Material containing allow materials
    2.Spring steel,rivets,welded joints
    3.Automobile drive shaft
    4.Tough steel and steel beyond the specification range
