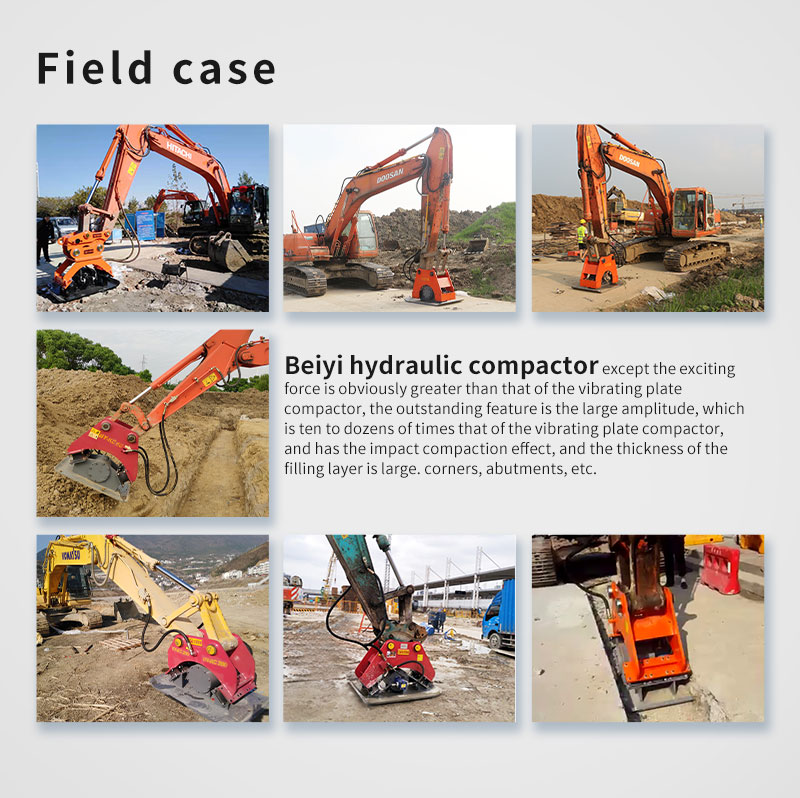

Application
Product configuration

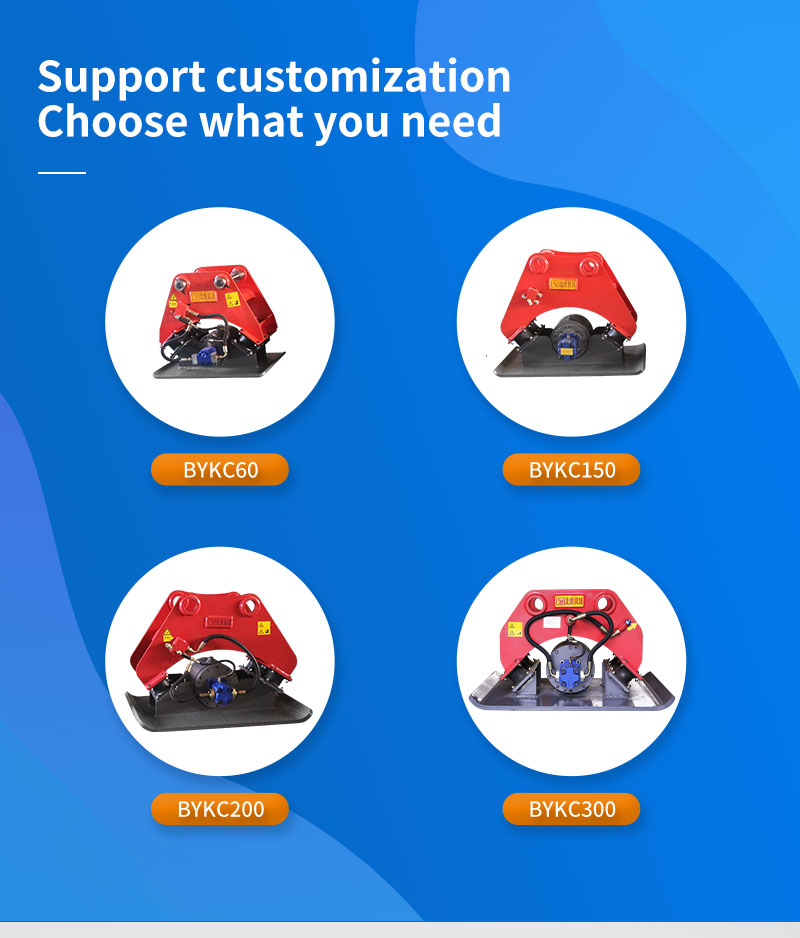

BY-KC60/150/200/300 Hydraulic Compactor

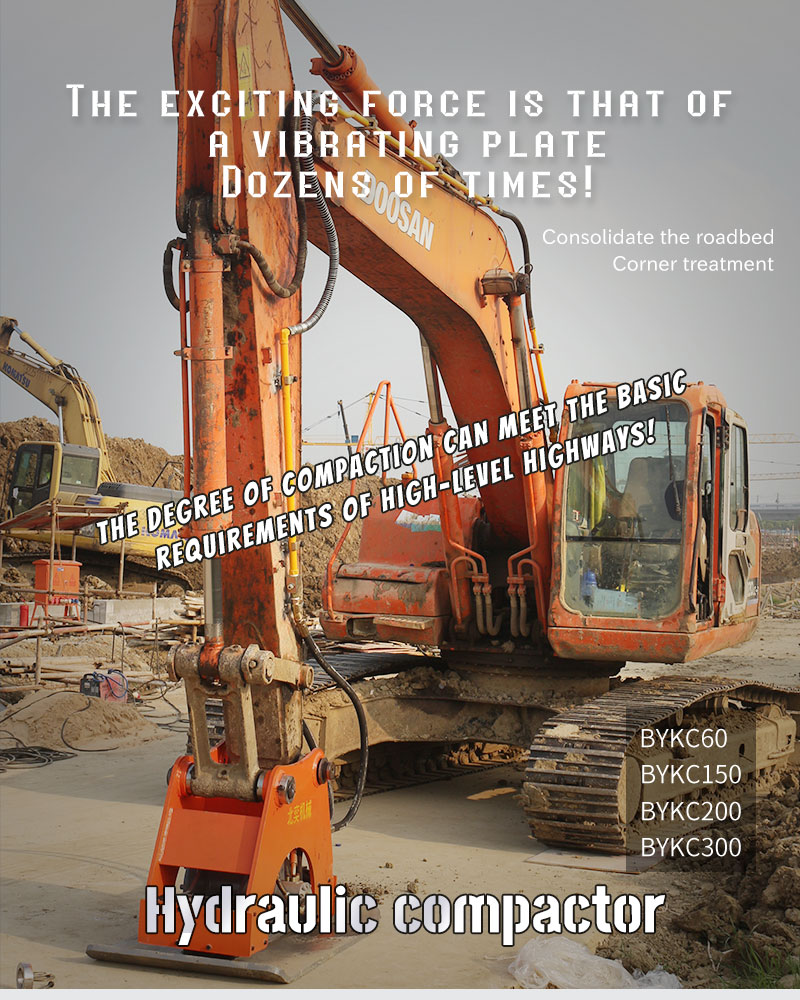

The degree of compaction can meet the basic requirements of high-level highways！

Beiyi hydraulic compactor except the exciting force is obviously greater than that of the vibrating plate compactor,the outstanding feature is the large amplitude,which is ten to dozens of times that of the vibrating plate compactor,and has the impact compaction effect,and the thickness of the filling layer is large corners,abutments,etc 振动夯_06.jpg

Modue(Unit)	BY-KC60	BY-KC150	BY-KC200	BY-KC300
Applicable Excavator(T)	4-9	11-16	17-23	23-30
Power Of Impulse(T)	4	6.5	15	15
Virbation Frequency(Rpm)	2000	2000	2000	2000
Oil Flow(L/min)	45-75	85-105	120-170	120-170
Pressure(Kg/cm²)	100-130	100-130	150-200	150-200
Weight(Kg)	300	610	960	1050
Bottom Measurement(mm)	91555020	105070025	133590030	133590030
Height(mm)	680	750	1055	1100
Width(mm)	550	700	900	900

Product features and details

1.Hydraulic vibratory rammer is made of hard steel plate,easy to install,practial and convenient.
2.Suitable for loose hard soil layer,frozen soil layer,soft rock,weathered rock,etc.
3.It is the most effective and fast-paced foundation engineering plan at present.

Bearing
Using cylinder roller bearings,low noise,high speed and reliability.
Motor
Using a plunger motor,it is sturdy and durable.
Flat
High-strength plates and high wear-resiatant plates are selected for key parts to ensure quality.
