    Hydraulic Grapple

    • Product overview
    • Application
    • Product configuration

    BYKL 10 Hydraulic Grapple-hydraulic rotator grapples


    Suitable for 24-30T excavators——

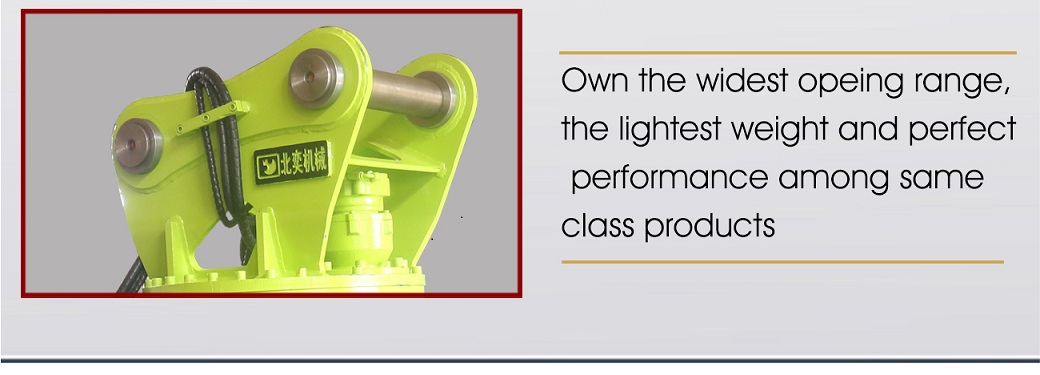

    -The wide opening width with light weight , not only outstanding performance in handing the iron bar but also maximize the operation efficiency with light weight.-Unlimited clockwise and anti-clockwise 360 rotatable.

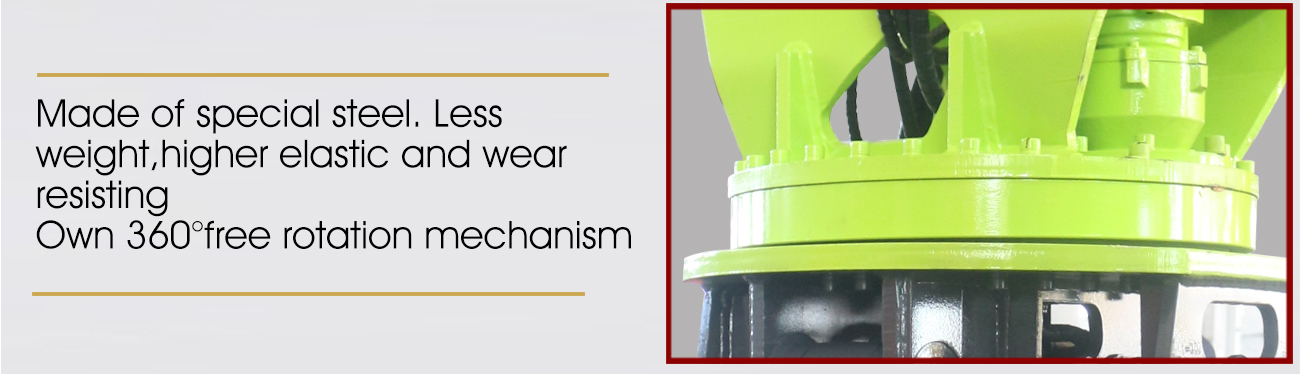

    -Special designed swing bearing for durability and big cylinder for more power.

    -Check valve is embedded for better safety shock value enclosed for better safety from damage.

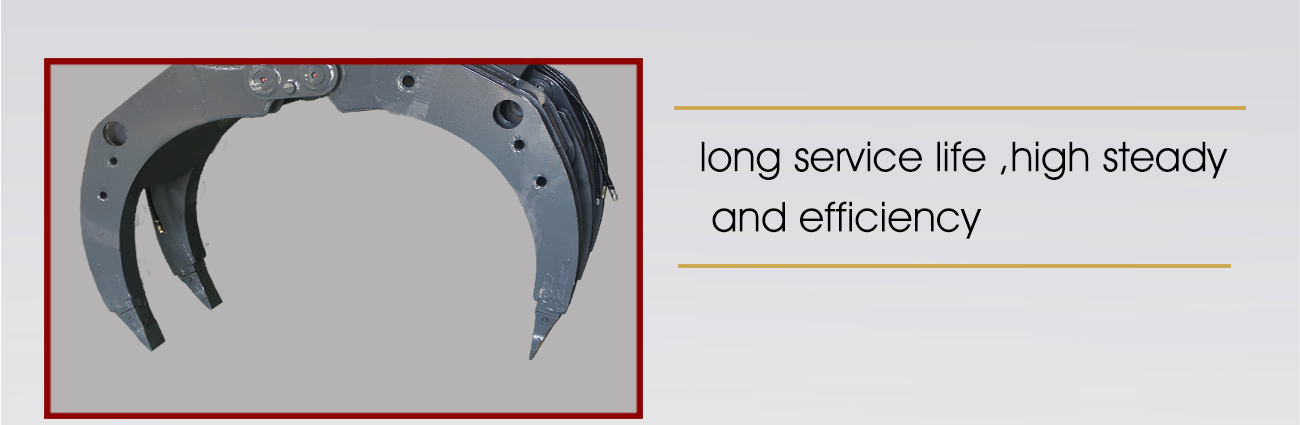

    -Wear resistant special solid steel is used and no extra reinforcement is requirement.

    -Flexible choices dependent on job environment Operator can control the rotating speed.

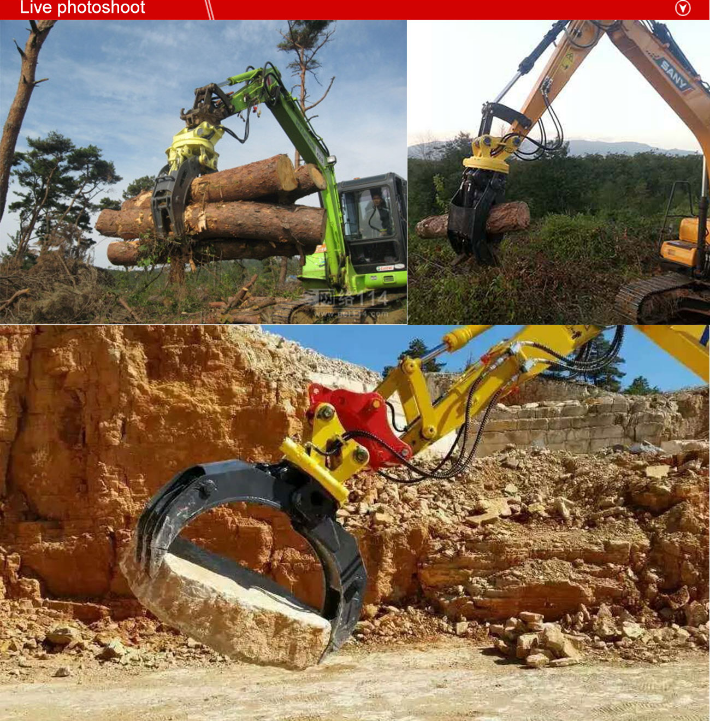

    Versatile applications including handing of stones,wood,cane,pipes,disposable waste,land-scaping works and many others.




    Versatile applications including handing of stones,wood,cane,pipes,disposable waste,land-scaping works and many others.



    Module   BYKL 03    BYKL 04    BYKL 06    BYKL 08    BYKL 10    BYKL 14    BYKL 20
    Weight(kg)3203907401380170019002100
    Max jaw opening(M/m)1300140018002300250025002700
    Oil Pressure(kg/cm²)110-140120-160150-170160-180160-180180-200180-200
    Operating flux(kg/cm²)170180190200210250250
    Cylinder Volume(L/min)30-5550-10090-110100-140130-170200-250250-320
    Suitable excavator(Ton)4×24.5×28.0×29.7×212×212×214×2
    Applicable Excavator(Ton)4-67-1112-1617-2324-3031-4041-50
