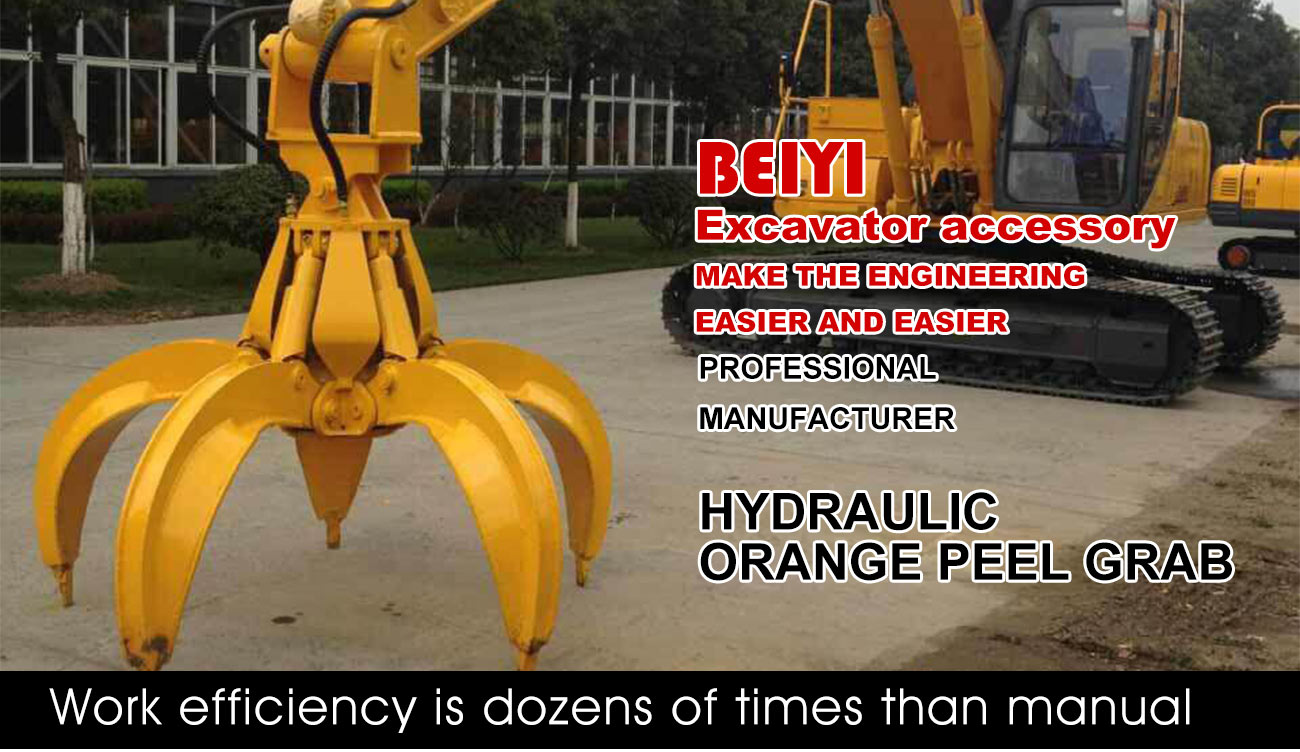

    BYKM 08/10 orange peel grapple-orange peel grab


    Suitable for 18-35T excavators——

    Hydraulic Grab is a high efficient equipment to handle waste steel ,iron,mineral,rubbish or other irregular massive material which replace human under various conditions.
    Hydrauilc grab belongs to hydraulic structural product. It is combined by hydraulic cylinder,grab bucket (jaw), connection columns, ear plate, earmuffs, bucket teeth, tooth block and other spare

    parts.The key driving parts is hydraulic oil cylinder.Excavator used hydraulic grab is divided into rotary and non-rotary two kinds .The non-rotary grab use the excavator oil pipeline which means it do not need additional hydraulic valve block and pipeline.Oppositely,the rotry grab need addtional hydraulic valve block and pipeline to operate.



    PERFORMANCE FEATURES

    With hydraulic rotary or not is according to the customers requests,the excavator grab without hydraulic rotary adopts excavator cylinder or standby line,no need to add other hydraulic value and pipeline excavator grab with hydraulic rotary need add another set of hydraulic value and pipeline to control,oil cylinder is equiped with piston protective device.HARDOX plate is used on the key places.

    Hydraulic grab can operate under various conditions. The unique designed jaw curve is perfect for grabing waste steel,iron and other irregular massive material.It owns 2-6 jaw,each jaw drived by an individual oil cylinder to insure the materials won't leak.Use for loading and unloading on port,stock dump,garbage station,building site and work shop etc,for grabbingstones,scrap metal,industrial waste,construction waste,living garbage.

    Excavator used hydraulic grab application scope:
    1.Digging construction foundation, deep hole or load soil,sand,coal,macadam etc.
    2.Digging and loading on the limited side of the channel or space
    3.Loading,stacking and transportation waste steel,crushed aggregates, saw dust, ballast in iron and steel enterprises,port,wharf,railway station,storage etc.

    ModuleBYKM 04BYKM 06BYKM 08BYKM 10
    Weight(kg)55095013001650
    Max jaw opening(mm)1700175019502180
    Height of closed grapple(mm)1470165017501900
    Set up pressure(bar)260260260260
    Operating flux(lpm)20-7060-12060-12060-120
    Cylinder volume(litre)4006008001000
    No. of jaw(piece)5-65-65-62-6
    Suitable excavator(Ton)5-1112-1818-2526-35
