    Excavator Quick Hitch

    • Product overview
    • Application
    • Product configuration

    BYLK70/80 Quick hitch-hydraulic quick coupler hitch


    Quick hitch
    Suitable for 17-23T excavators——

    FULL AUTOMATIC DOUBLE SAFETY SYSTEM

    -Electronic drive system is installed in the cab,the expensive hydraulic pressure is replaced by the electric power,which saves the cost from the production. Operators in the cab can easily turn on and turn off the quick hitch through the switch.

    -Check valve Protection System:each cylinder installed safety check valve ensures that quick hitch coupler can work when the oil circuit and the circuit is cut off.

    -Safety Pin Protection System:security protection is customized for each excavator according to the different parameters.

    In the case of the failure of cylinder ,quick hitch coupler can work regularly.

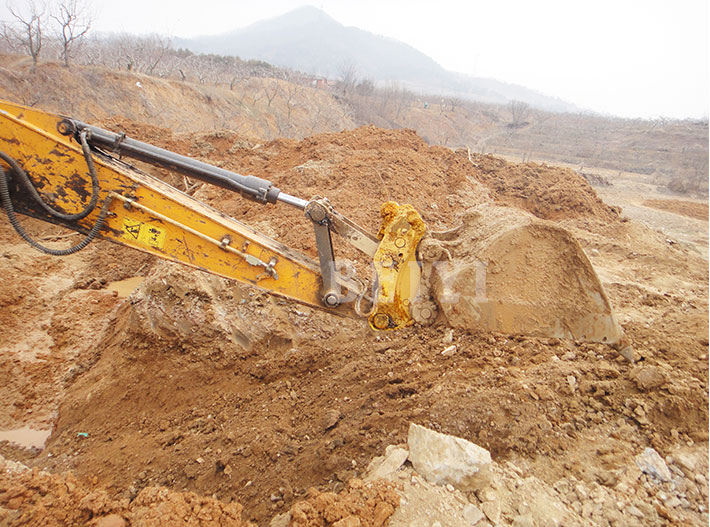

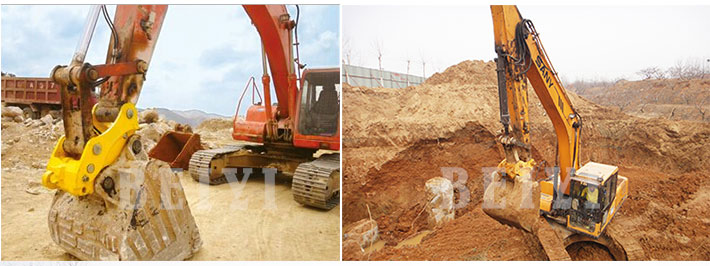

    It is installed on the excavator for use. The fast connector can quickly install and switch various configuration parts (bucket, ripper, breaking hammer, hydraulic shear, etc.) on the excavator, can expand the scope of use of the excavator, and can save time, improve the efficiency.

    Quick hitch

    Quick hitch

    ModelBYLK 70/BYLK 80
    Overall Length(Mm)924-944
    Overall Height(Mm)492
    Overall Width(Mm)449-483
    Pin to Pin Center Distance(Mm)460-480
    Forearm Open Width(Mm)306-340
    Retractable Distance of Oil Cylinder(Mm)256-390
    Top to Bottom Pin Distance(Mm)275
    Pin Diameter(Mm)70-80
    Weight(Kg)280-290
    Working Pressure(Kg/m²)40-380
    Required Oil Flow(L/min)10-20
    Suitable Excavator(Ton)17-23
