    BYLK100/110 Quick hitch-excavator quick coupler

    Quick hitch
    Suitable for 33-45T excavators——

    FULL AUTOMATIC DOUBLE SAFETY SYSTEM

    -Electronic drive system is installed in the cab,the expensive hydraulic pressure is replaced by the electric power,which saves the cost from the production. Operators in the cab can easily turn on and turn off the quick hitch through the switch.

    -Check valve Protection System:each cylinder installed safety check valve ensures that quick hitch coupler can work when the oil circuit and the circuit is cut off.

    -Safety Pin Protection System:security protection is customized for each excavator according to the different parameters.

    In the case of the failure of cylinder ,quick hitch coupler can work regularly.

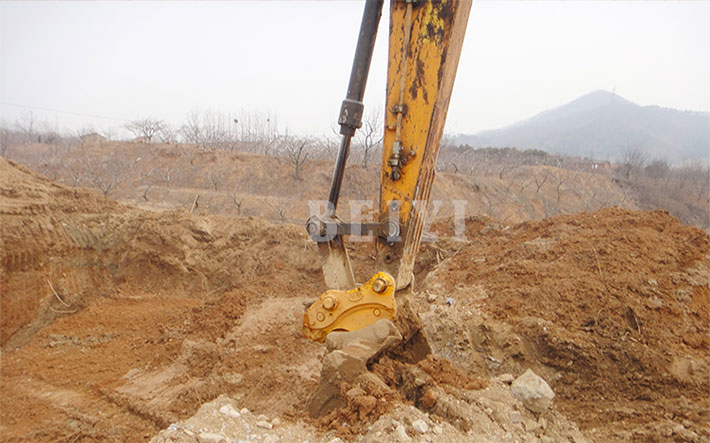

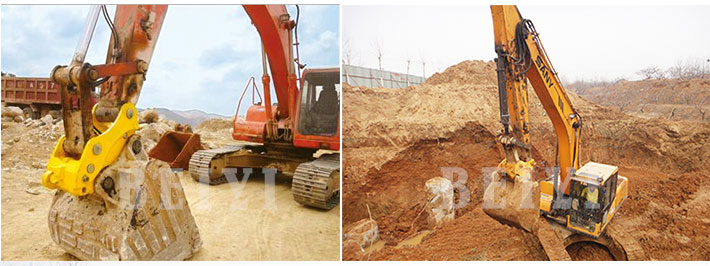

    It is installed on the excavator for use. The fast connector can quickly install and switch various configuration parts (bucket, ripper, breaking hammer, hydraulic shear, etc.) on the excavator, can expand the scope of use of the excavator, and can save time, improve the efficiency.
    Quick hitch

    Quick hitch



    ModelBYLK 100/BYLK 110
    Overall Length(Mm)1006-1173
    Overall Height(Mm)558-610
    Overall Width(Mm)606-663
    Pin to Pin Center Distance(Mm)550-620
    Forearm Open Width(Mm)416-469
    Retractable Distance of Oil Cylinder(Mm)520-590
    Top to Bottom Pin Distance(Mm)360
    Pin Diameter(Mm)90-120
    Weight(Kg)450-580
    Working Pressure(Kg/m²)40-380
    Required Oil Flow(L/min)10-20
    Suitable Excavator(Ton)33-45
