    Hydraulic Pile Pulling Machine

    • Product overview
    • Application
    • Product configuration

    BY-PM300LS/360LS Hydraulic Pile Pulling Machine Pile Extractor

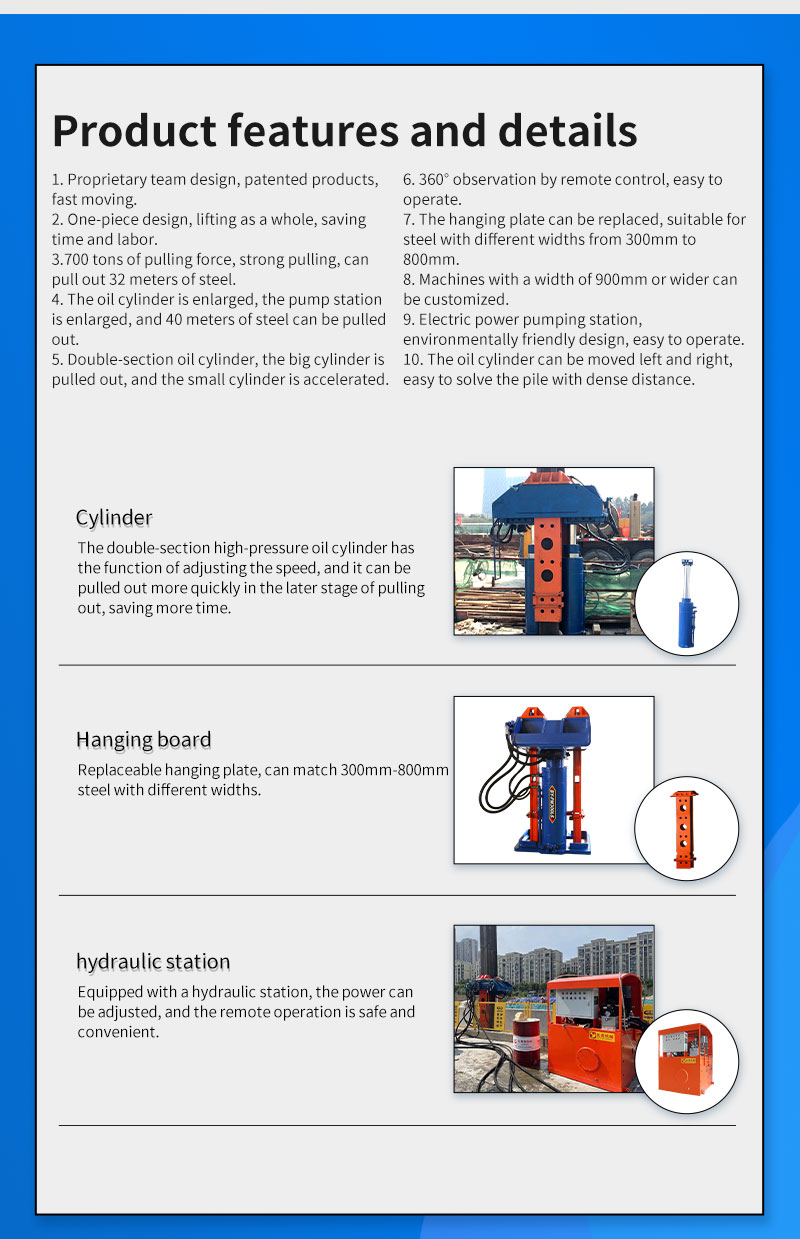

    Product features and details

    1.Proprietary team design,patented products,fast moving.
    2.One-piece design,lifting as a whole,saving time and labor.
    3.700 tons of pulling force,strong pulling,can pull out 32 meters of steel.
    4.The oil cylinder is enlarged,the pump station is enlarged,and 40 meters of steel can be pulled out.
    5.Double-section oil cylinder,the big cylinder is pulled out,and the small cylinder is accelerated.
    6.360° observation by remote control,easy to operate.
    7.The hanging plate can be replaced,suitable for steel with different widths from 300mm to 800mm.
    8.Machines with a width of 900mm or wider can be customized.
    9.Electric power pumping station,environmentally friendly design,easy to operate.
    10.The oil cylinder can be moved left and right,easy to solve the pile with dense distance.



    Cylinder
    The double-section high-professional oil cylinder has the function of adjusting the speed,and it can be pulled out more quickly in the large stage of pulling out more quickly in the later stage of pulling out,saving more time.

    Hanging board
    Replaceable hanging plate,can match 300mm-800mm steel with different widths.

    Hydraulic station
    Equipped with a hydraulic station,the power can be adjusted,and the remote operation is safe and convenient.

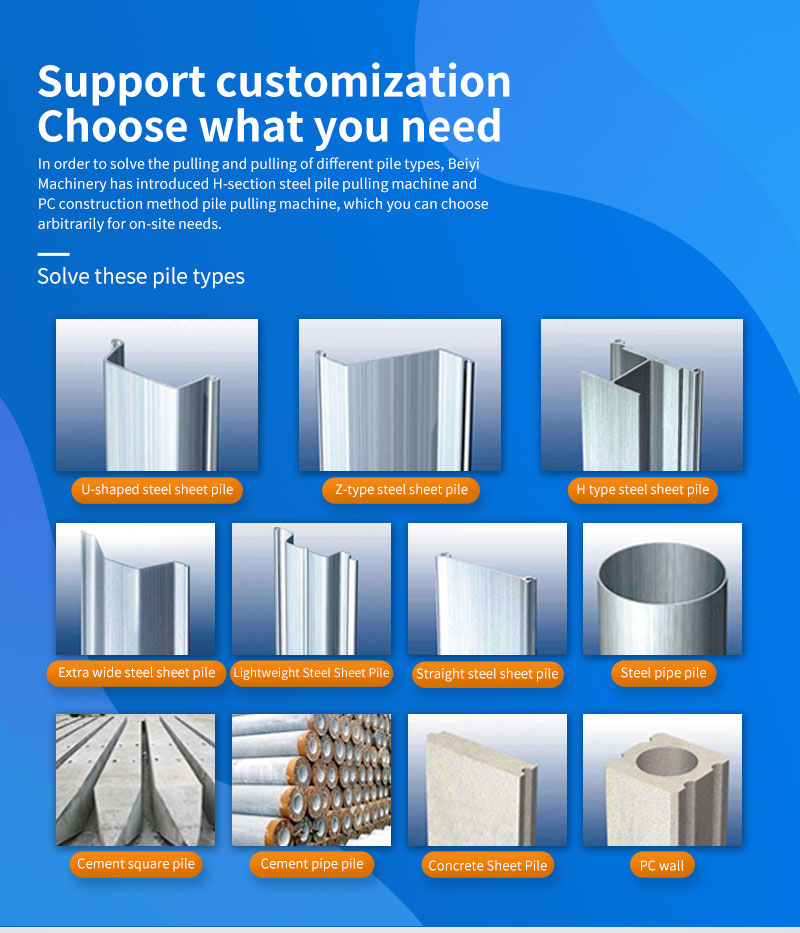

    Support customization
    Choose what you need


    In order to solve the pulling and pulling of different pile types,Beiyi Machinery has introduced H-section steel pile pulling machine and PC construction method pile pulling machine,which you can shoose arbitrarily for on-site needs.

    Pile Types:
    U-shaped steel sheet pile
    Z-type steel sheet pile
    H-type steel sheet pile
    Extra wide steel sheet pile
    Light weight steel sheet pile
    Straight steel sheet pile
    Steel pipe pile
    Cement square pile
    Cement pipe pile
    Concrete sheet pile
    PC wall

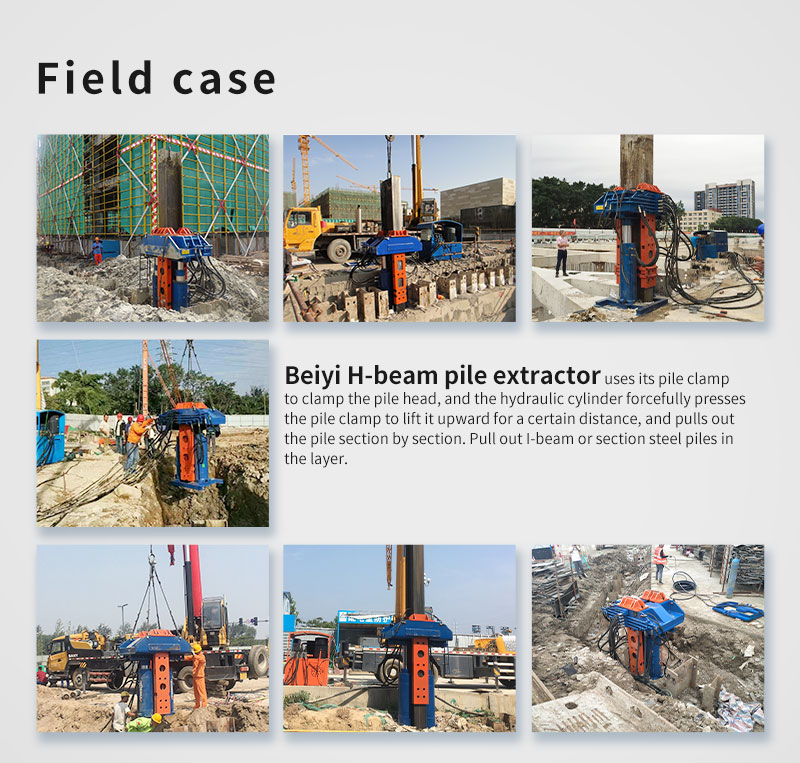

    Beiyi H-beam pile extractor uses its pile clamp to clamp the pile head,and the hydraulic cylinder forcefully presses the pile clamp to lift it upward for a certain distance,and pulls out the pile section by section.Pull out l-beam or section steel piles in the layer.

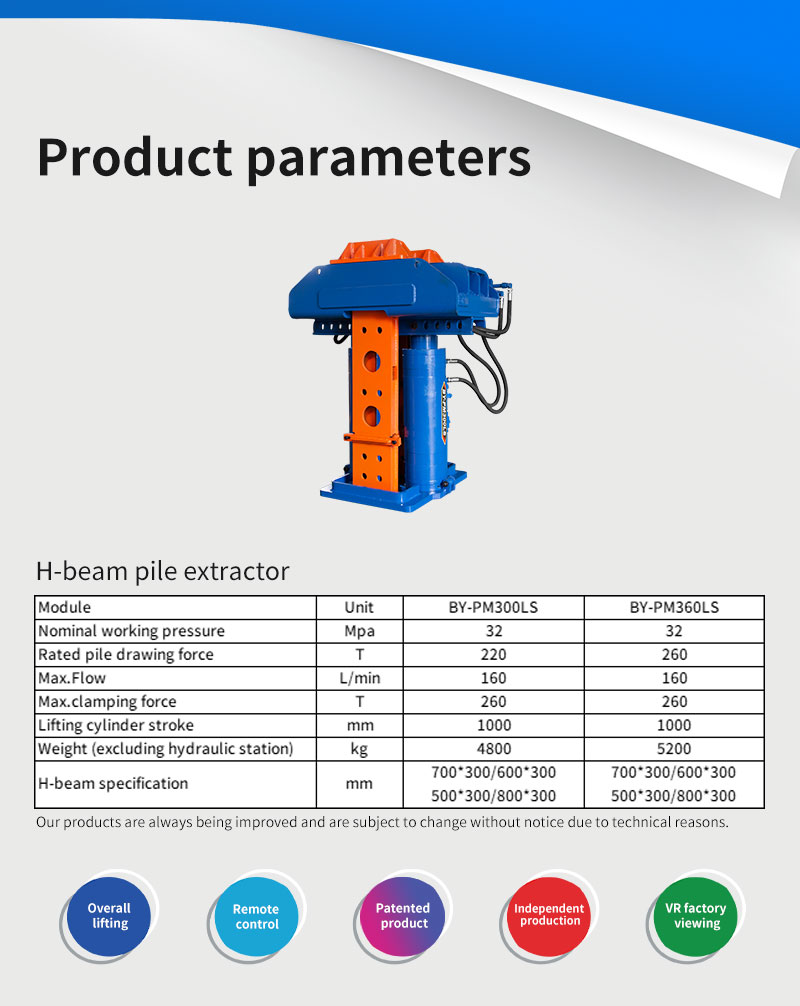

    Module
    (Unit)
    BY-PM300LSBY-PM360LS
    Nominal working pressure
    (Mpa)
    3232
    Rated pile drawing force
    (T)
    220260
    Max.Flow
    (L/min)
    160160
    Max.clamping force
    (T)
    260260
    Lifting cylinder stroke
    (mm)
    10001000
    Weight(excluding hydraulic station)
    (kg)
    48005200
    H-beam specification
    (mm)
    700*300/600*300
    500*300/800*300
    700*300/600*300
    500*300/800*300
