    Vibratory Pile Driver

    • Product overview
    • Application
    • Product configuration

    BY-VH450 Mounted Vibro Hammer--For 40-65T Excavator

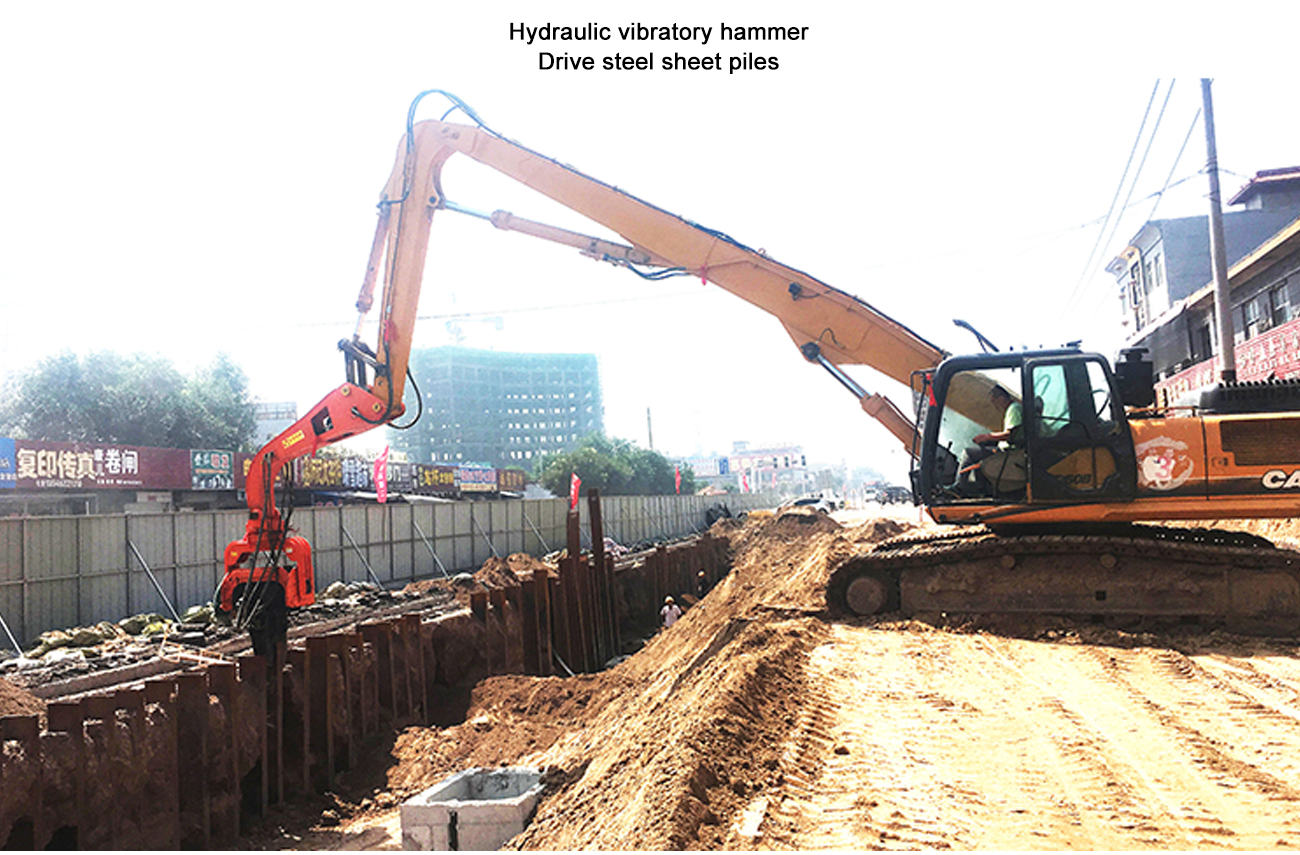

    The efficient of vibration pile method is higher than other methods. It is mainly applied to steel sheet pile, steel pipe pile and long slender concrete precast pile within 8 meters. This pile driving method is the most suitable for working in sand and poorer effect in the clay which must select higher power model machines.






    Model
    BY-VH250BY-VH330BY-VH350BY-VH450
    Eccentric moment (Nm)40506585
    Frequency (Rpm)2800280028002800
    Excitation Force (Ton)36455875
    Weight of main body (Kg)1500220028003500
    Operating Pressure of oil system (Bar)280280300300
    Flow Demand for Hydraulic oil system (Lpm)155168210255
    Excavator (Ton)18-2223-3033-4040-65
    Max pile length (M)9131618

    Vibratory pile driving machines (also called vibratory hammers) use spinning counterweights to create a vibration, which causes a pile to “cut” into the soil below. While a traditional pile driver works like a hammer and a nail, a vibratory hammer works more like an electric knife cutting through meat. The high speed vibration causes the soil to give way, allowing the pile to slip easily into the ground.
