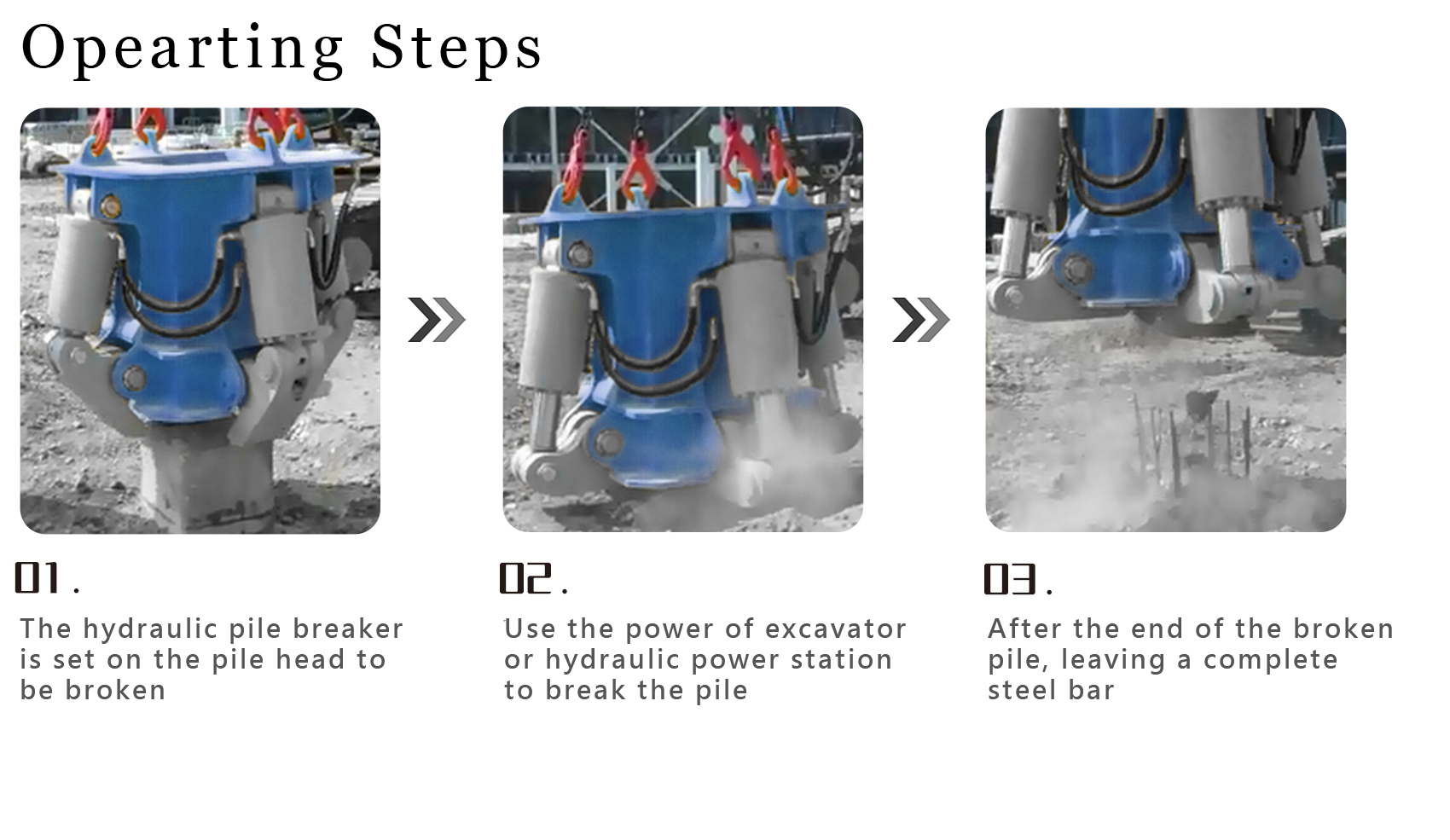

Operating Steps
1.The hydraulic pile breaker is set on the pile head to be broken
2.Use the power of excavator or hydraulic power station to break the pile
3.After the end of the broken pile，leaving a complete steel bar
4 Claws pile breaker
▲ Lightweight Design
▲ Use high-strength materials to reduce weight
4 replaceable crushing claws
▲ Apply the same force at each cut point
▲ Improve cutting power and precision
| Model | BYC500S(square) | BYR1100S（round） |
| Maximum pressure of crushing teeth(KN) | 320 | 320 |
| Maximum flow of single cylinder (L/Min) | 20 | 20 |
| Width of crushing teeth (mm) | 150 | 150 |
| Stroke of hydraulic cylinder (mm) | 180 | 180 |
| Height of single pile cutting (mm) | 300 | 300 |
| Tonnage of supporting construction (T) | ≥20 | ≥30 |
| Maximum pressure of hydraulic (MPa) | 32 | 32 |
| Scope of crushing pile (mm) | 300-550 | 800-1100 |
| Weight of the whole machine (KG) | 2500 | 3500 |
Our products are always being upgrated,and changes due to technical reasons will not be notified.
