    Hydraulic Grapple

    • Product overview
    • Application
    • Product configuration

    BYKL 14 Hydraulic Grapple-excavator hydraulic rotator grapple


    Suitable for 31-40T excavators——

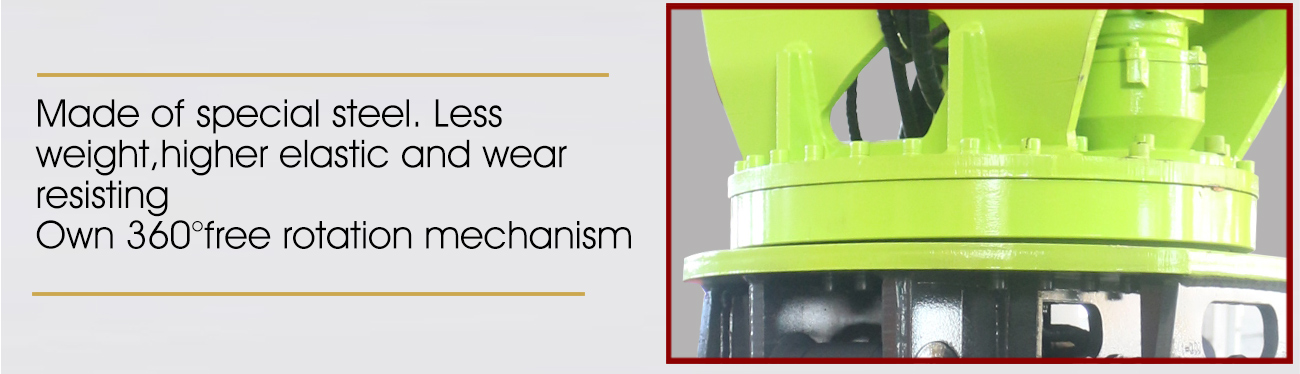

    -The wide opening width with light weight , not only outstanding performance in handing the iron bar but also maximize the operation efficiency with light weight.-Unlimited clockwise and anti-clockwise 360 rotatable.

    -Special designed swing bearing for durability and big cylinder for more power.

    -Check valve is embedded for better safety shock value enclosed for better safety from damage.

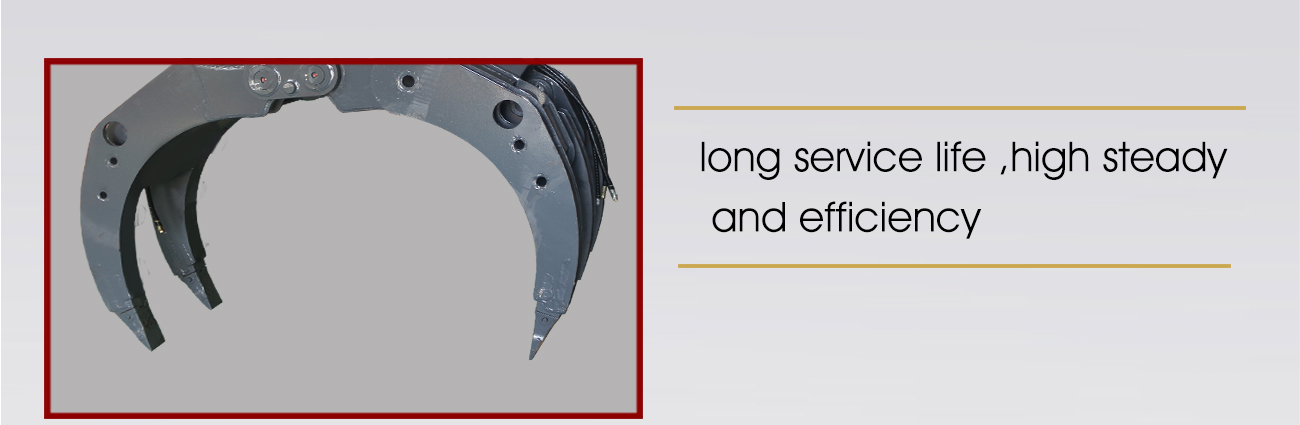

    -Wear resistant special solid steel is used and no extra reinforcement is requirement.

    -Flexible choices dependent on job environment Operator can control the rotating speed.

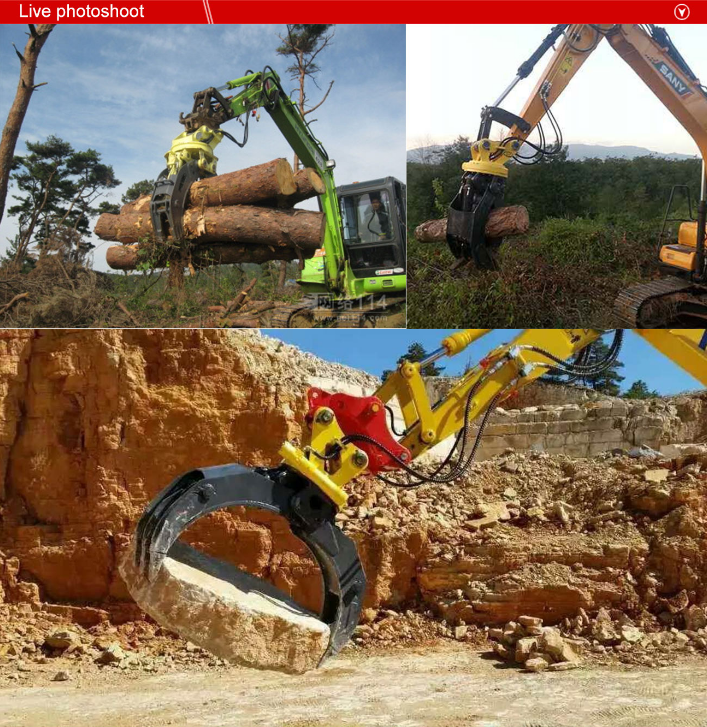

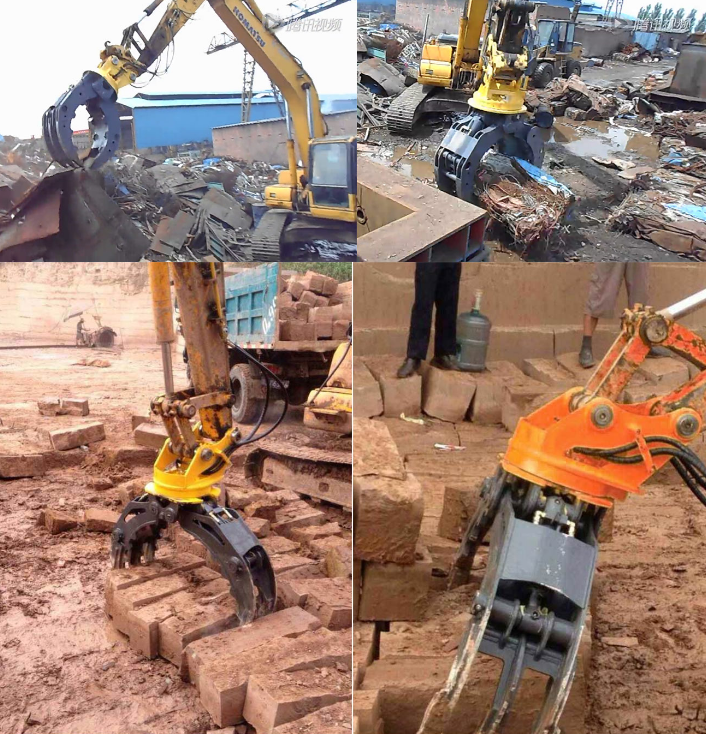

    Versatile applications including handing of stones,wood,cane,pipes,disposable waste,land-scaping works and many others.



    Versatile applications including handing of stones,wood,cane,pipes,disposable waste,land-scaping works and many others.


    Module   BYKL 03    BYKL 04    BYKL 06    BYKL 08    BYKL 10    BYKL 14    BYKL 20
    Weight
    (kg)
    3203907401380170019002100
    Max jaw opening
    (M/m)
    1300140018002300250025002700
    Oil Pressure
    (kg/cm
    ²)
    110-140120-160150-170160-180160-180180-200180-200
    Operating flux
    (kg/cm
    ²)
    170180190200210250250
    Cylinder Volume
    (L/min)
    30-5550-10090-110100-140130-170200-250250-320
    Suitable excavator
    (Ton)
    4×24.5×28.0×29.7×212×212×214×2
    Applicable Excavator
    (Ton)
    4-67-1112-1617-2324-3031-4041-50
